7443320470
Manufacturer:
Wurth Electronics
Mfr.Part #:
7443320470
Datasheet:
Description:

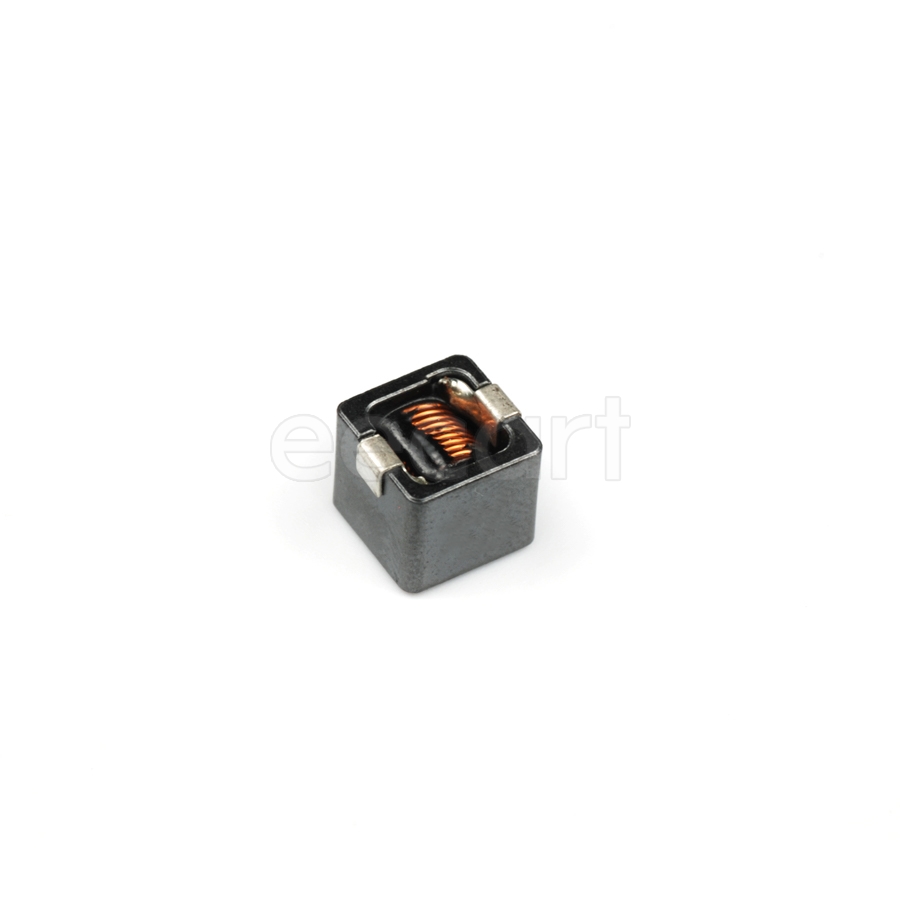

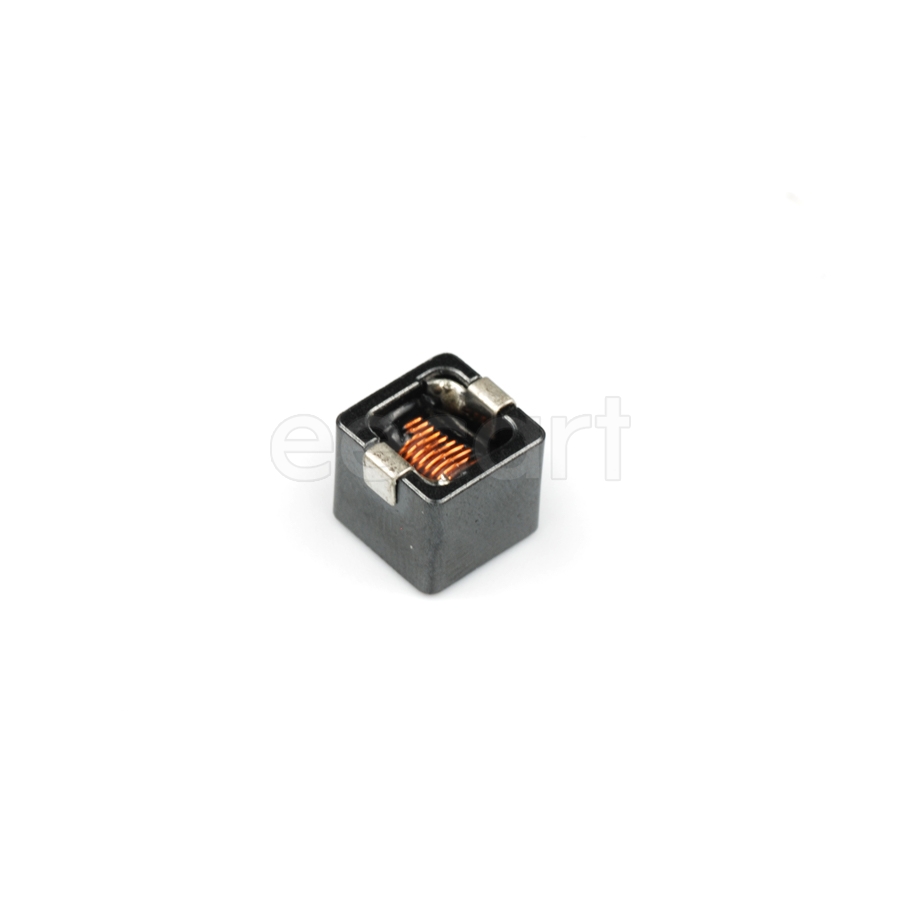

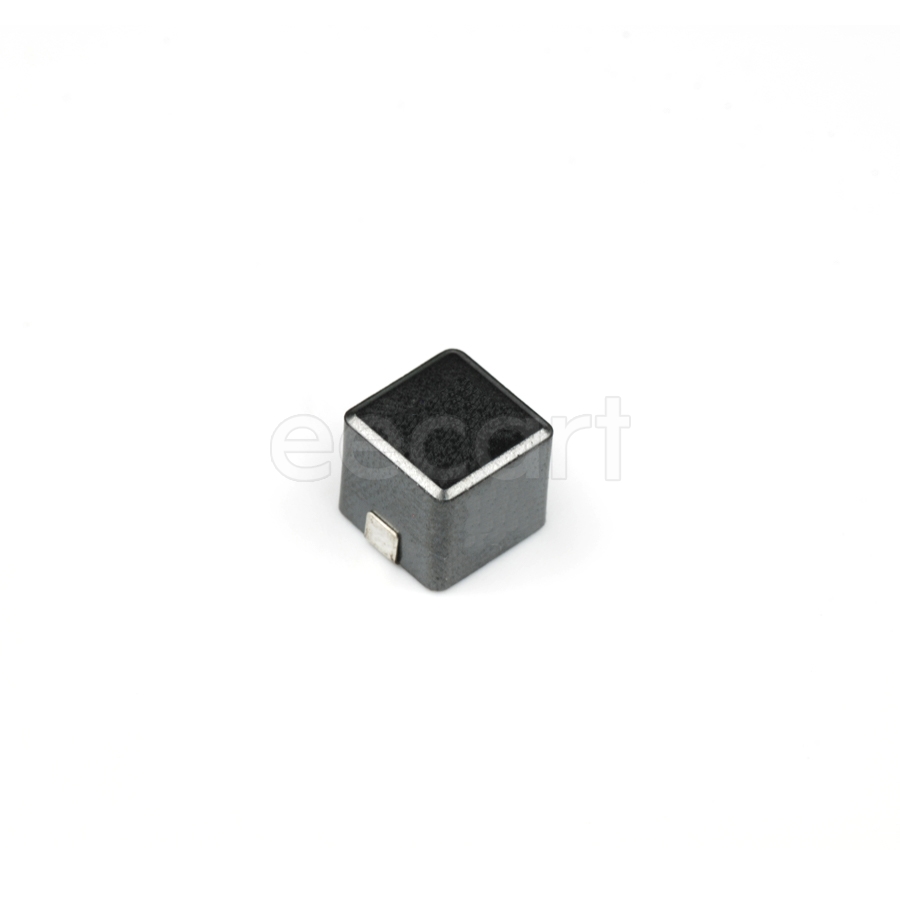

Fixed Inductors 12.10mmL×11.40mmW×10.00mmH SMD/SMT 4.7 µH 20 % 15.5 A 7.9 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 10 mm |
| Length | 12.1 mm |
| Width | 11.4 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 9.5 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Self Resonant Frequency | 43 MHz |
| Type | Wirewound |
| DC Resistance (DCR) | 7.9 mΩ |
| Test Frequency | 100 kHz |
| Shielding | Shielded |
| Inductance | 4.7 µH |
| Core Material | Ferrite |
| inductance tolerance | 20 % |
| Saturation Current | 17 A |
| Current Rating | 15.5 A |
Stock: 569
Distributors
pcbx
pcbxUnit Price$1.63976
Ext.Price$1.63976
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.63976 | $1.63976 |
| 10 | $1.58931 | $15.89310 |
| 25 | $1.54817 | $38.70425 |
| 50 | $1.50810 | $75.40500 |
| 100 | $1.45167 | $145.16700 |
| 300 | $1.40209 | $420.62700 |
| 500 | $1.20801 | $604.00500 |
